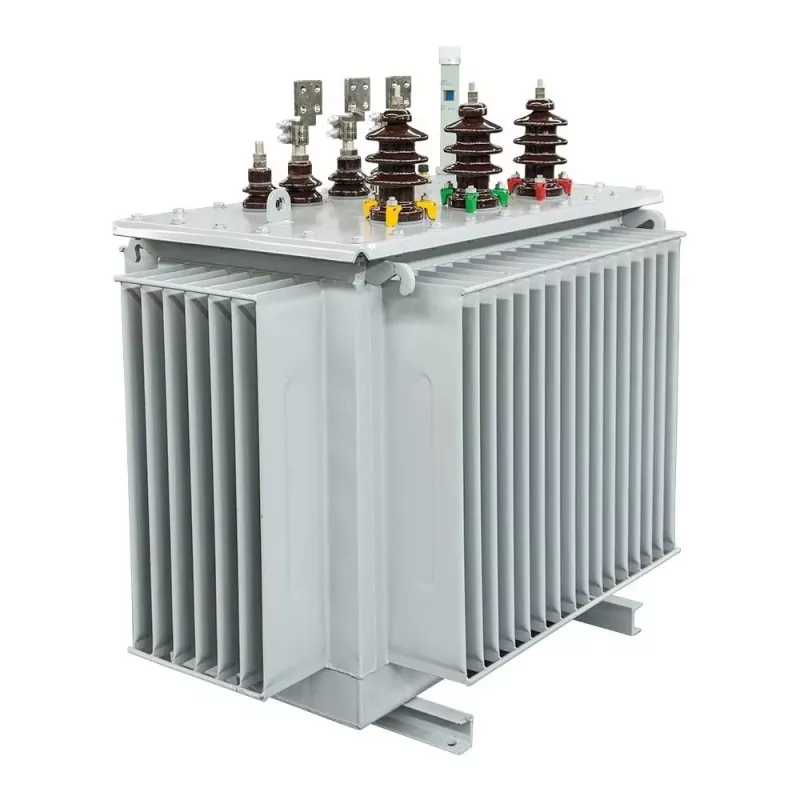

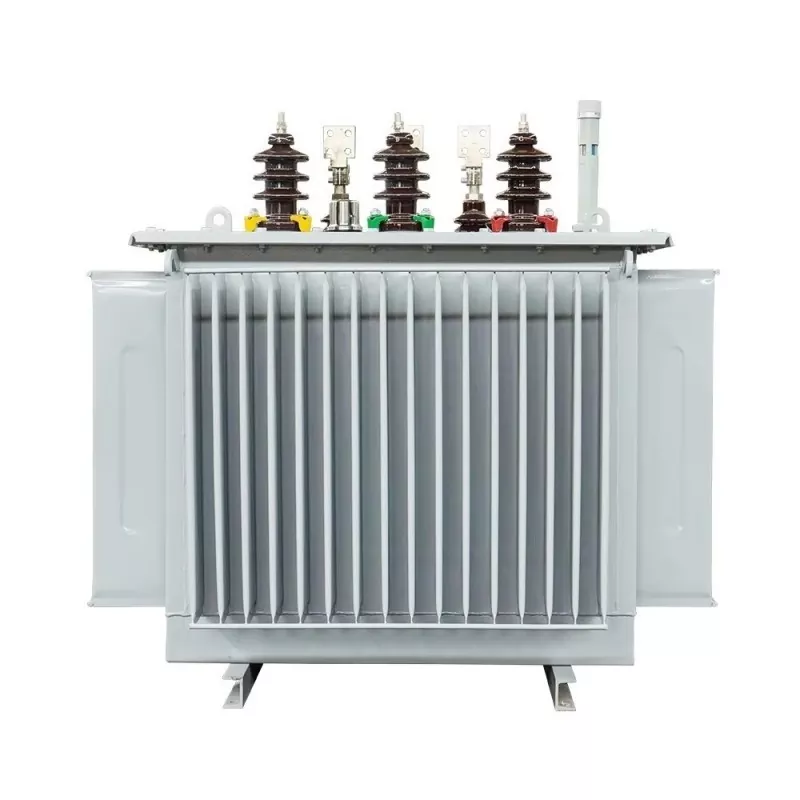

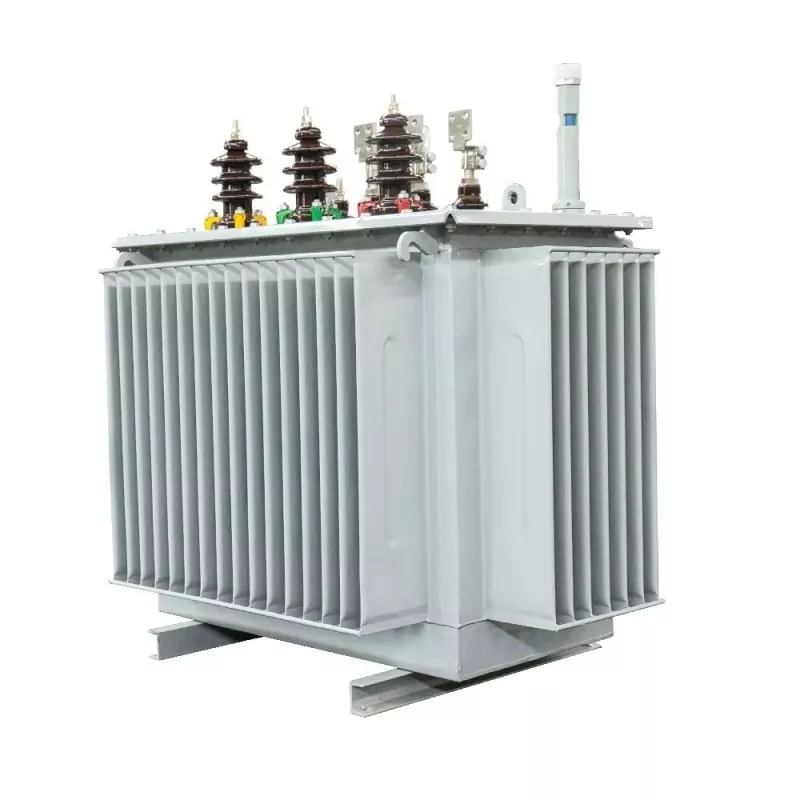

500kva高圧油入変圧器

中国の専門メーカーおよびサプライヤーとして、Lugao Power Co., Ltd.の 500kva 高電圧油入変圧器は多くの国で賞賛されており、LUGAO のリピーターとなっています。年間100台以上の海外販売実績があり、豊富な輸出実績があります。専門的な取り付けガイダンスを提供しますので、取り付けの問題を心配する必要はありません。当社の専門サポートスタッフがいつでもお客様にサービスを提供いたします。最小注文数量は 1 ユニットで、標準的な輸出梱包が提供されます。

お問い合わせを送信

製品説明

As a professional China supplier, LUGAO provides Three phase Power Transformer with stable performance and competitive pricing. 500kva High Voltage Oil Immersed Transformer is suitable for residential areas or residential areas. It uses the principle of electromagnetic induction to convert high voltage into a small voltage suitable for civilian use. It is one of the important equipment for the power grid to maintain stable power supply for a long time. LUGAO insists on using high-quality windings and cores to reduce losses and maintenance costs.

500kva High Voltage Oil Immersed Transformer uses insulating oil as a cooling medium. The oil has a large specific heat capacity and can absorb the heat generated when the equipment is running. The oil decomposes the arc-extinguishing gas at high temperature, extinguishes the arc in time, and protects the internal components. The insulating oil isolates air and moisture from entering the body, preventing metal devices from getting damp and oxidizing. When installing High Voltage Transformer, be careful not to tilt them and keep them stable. Reserve a place for heat dissipation to avoid accumulation of debris. LUGAO's transformers have passed many international standards and will continue to innovate in the future to design more energy-saving and efficient products.

Parameter

500kva High Voltage Oil Immersed Transformer

Capacity (KVA)	S9			S11			S13			SH15
Capacity (KVA)	NILL	LL	No-Loading Current	NILL	LL	No-Loading Current	NILL	LL	No-Loading Current	NILL	LL	No-Loading Current
30	130	600	2.1	100	600	2.1	65	600	0.63	33	600	1.7
50	170	870	2.0	150	870	2.0	85	870	0.60	43	870	1.3
63	200	1040	1.9	180	1040	1.9	100	1040	0.57	50	1040	1.2
80	250	1250	1.8	200	1250	1.8	125	1250	0.54	60	1250	1.1
100	290	1500	1.7	230	1500	1.7	145	1500	0.48	75	1500	1
125	340	1800	1.6	270	1800	1.6	170	1800	0.45	85	1800	0.9
160	400	2200	1.5	310	2200	1.5	200	2200	0.42	100	2200	0.7
200	480	2600	1.4	380	2600	1.4	240	2600	0.39	120	2600	0.7
250	560	3050	1.3	460	3050	1.3	280	3050	0.36	140	3050	0.7
315	670	3650	1.2	540	3650	1.2	335	3650	0.38	170	3650	0.5
400	800	4300	1.1	650	4300	1.1	400	4300	0.30	200	4300	0.5
500	960	5150	1.0	780	5150	1.0	480	5150	0.30	240	5150	0.5
630	1200	6200	0.9	920	6200	0.9	600	6200	0.27	320	6200	0.3
800	1400	7500	0.8	1120	7500	0.8	700	7500	0.24	380	7500	0.3
1000	1700	10300	0.7	1320	10300	0.7	850	10300	0.21	450	10300	0.3
1250	1950	12000	0.6	1560	12000	0.6	975	12000	0.18	530	12000	0.2
1600	2400	14500	0.6	1880	14500	0.6	1200	14500	0.18	630	14500	0.2
2000	2830	20000	0.6	2280	19800	0.5				750	17400	0.2
2500	3350	24000	0.6	2630	23000	0.5				900	20020	0.2

Operating Environment

1. Standard operating temperature is between -30°C and +40°C. When the temperature exceeds 40°C, the equipment must operate in reduced load mode.

2. Standard operating altitude is below 1,000 meters.

3. Standard operating humidity is a daily average of ≤95% and a monthly average of ≤90%.

4. The installation tilt angle must not exceed 15°.

5. Regularly inspect the oil level gauge, oil quality, and surrounding environment.

6. Keep away from flammable areas, electromagnetic interference zones, and other locations that may affect transformer operation.

Features

1. LUGAO's 500kva High Voltage Oil Immersed Transformer has excellent heat dissipation performance. The transformer oil can quickly absorb the heat generated by the windings and core, and promote heat circulation through the radiator.

2. Superior insulation performance, as the insulating oil effectively isolates internal discharges.

3. Long service life, as transformer oil protects the core and windings and slows down the oxidation process.

4. Strong environmental adaptability. The sealed oil tank blocks external contaminants.

5. LUGAO's transformers are manufactured in accordance with multiple international standards, ensuring product quality.
