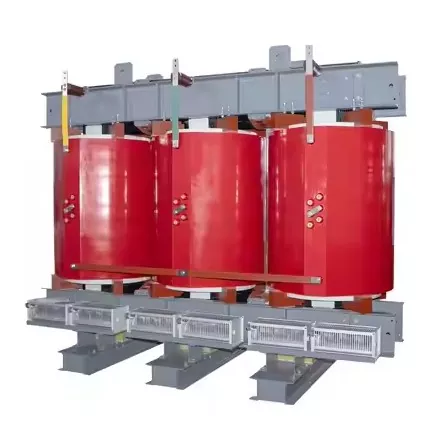

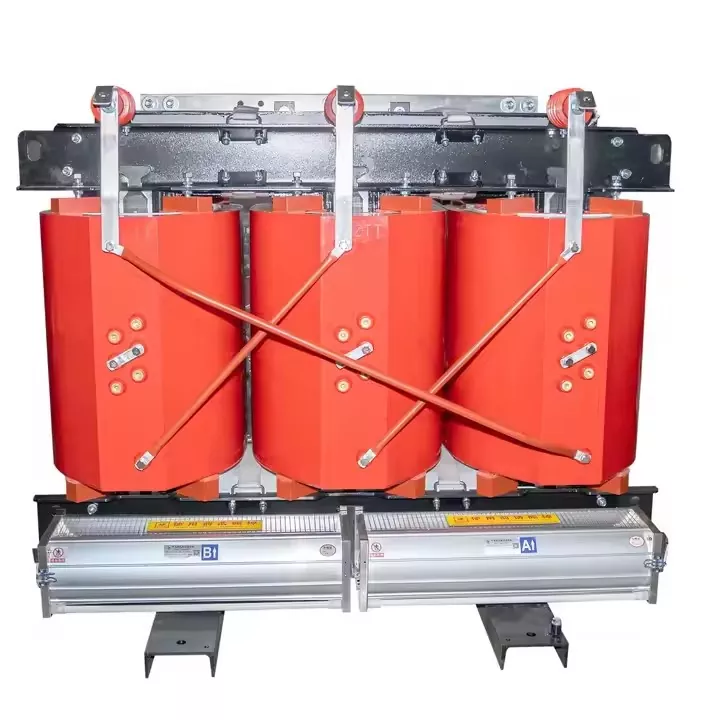

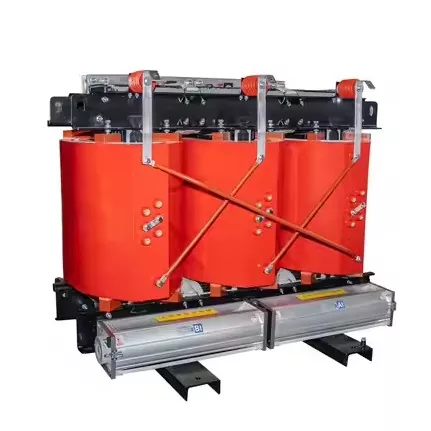

乾式三相配電変圧器

中国の専門メーカーおよびサプライヤーとして、LUGAO は業界最高の生産技術を備え、年間 100 台以上の乾式三相配電変圧器を輸出しています。 LUGAO に協力する国際パートナーの数は年々増加しています。 LUGAO には完全な生産ラインと専門チームがいつでも顧客にサービスを提供し、配電ソリューションの設計を支援します。

お問い合わせを送信

製品説明

LUGAO is a professional China supplier, manufacturer, and factory of high-quality Dry Type Three Phase Distribution Transformer, offering OEM/ODM services, competitive prices, and free samples. Get in touch today for a quick quote and reliable sourcing solution. Dry Type Three Phase Distribution Transformer utilize the principle of electromagnetic induction to achieve voltage conversion. During operation, when the primary winding is energized, it generates an alternating magnetic flux that is coupled through the core to the secondary winding, thereby inducing an electromotive force. Wrapping foil sheets around the high and low voltage windings can enhance short circuit withstand capability. The use of a filtered casting process eliminates stress caused by temperature changes during transformer operation, while the use of epoxy resin provides better heat resistance for the windings, ensuring equipment safety. The core is made of high quality cold rolled silicon steel sheets, stacked at a 45° angle to reduce losses, and flat plates are used to avoid noise interference.

LUGAO's Epoxy Resin Transformer can be customized according to customer requirements for voltage ratings, dimensions, and housing materials to suit different environmental conditions. The product is suitable for outdoor installation but should be avoided in areas with electromagnetic interference. LUGAO's products comply with international standards such as CE and ISO, and the company will continue to innovate in design to manufacture more energy efficient and environmentally friendly transformers.

Operating Environment

1. The standard operating temperature range is -25°C to +40°C. If the temperature exceeds this range, please consult with the LUGAO team for a solution.

2. The standard operating humidity should be ≤90%. In high-humidity environments, better protective materials should be selected.

3. The standard altitude range is ≤1000 meters. If the altitude exceeds this range, please consult with the LUGAO team for a special design.

4. Ensure sufficient space is provided during installation to allow the transformer to dissipate heat. Do not tilt the equipment.

5. Keep away from areas with strong electromagnetic interference and avoid installation in environments containing corrosive gases.

Parameter

Dry Type Three Phase Distribution Transformer

Rated capacit y(kVA)	Voltage group			Impedanc evoltage (%)	No- load loss (W)	Load loss 120° C(W)	No- load curre n(W)	Sound level (dB)	Weight (kg)
Rated capacit y(kVA)	HV (kV)	Tap range	LV (kV)	Impedanc evoltage (%)	No- load loss (W)	Load loss 120° C(W)	No- load curre n(W)	Sound level (dB)	Weight (kg)
30	10 11 10.5 6.6 6.3 6	+/-2x2.5 %+/-5%	0.4	4	190	710	2.0	44	220
50					270	1000	2.0	44	320
80					370	1380	1.5	45	460
100					400	1570	1.5	45	580
125					470	1850	1.3	46	750
160					540	2130	1.3	46	780
200					620	2530	1.1	47	850
250					720	2760	1.1	48	1030
315					880	3470	1.0	48	1060
400					980	3990	1.0	49	1400
500					1160	4880	1.0	49	1550
630					134 0	5880	0.85	49	1820
630				6	1300	5960	0.85	50	1850
800					1520	6960	0.85	51	2150
1000					1770	8130	0.85	52	2550
1250					209 0	9690	0.85	53	3020
1600					245 0	11730	0.85	54	4500
2000					305 。	14450	0.7	55	5300
2500					360 0	17170	0.7	56	6200
