乾式空冷三相変圧器

As a reliable Dry Type Air Cooling 3 Phase Transformer manufacturer, we offer a stable supply and can tailor details to your equipment's specifications. For pricing details, please contact us directly. LUGAO Dry Type Air Cooling 3 Phase Transformer utilize the principle of electromagnetic induction to achieve voltage conversion. During operation, when the primary winding is energized, it generates an alternating magnetic flux, which is coupled through the core to the secondary winding, thereby inducing an electromotive force. Air-cooled transformers use epoxy resin or silicone rubber as insulating materials. These materials possess self-extinguishing properties and do not pose safety hazards due to oil leakage. During the casting process, the pre wound coils are placed in specially designed molds, followed by the injection of an epoxy resin mixture and heating for curing. The resulting structure has high mechanical strength, effectively isolating external dust and moisture while protecting internal metal components. High-quality silicon steel sheets and windings are selected as materials, offering the advantages of low noise and low loss, making them suitable for environments such as office buildings, hospitals, and schools.

Dry type air cooled transformers can be customized according to customer requirements for voltage ratings, dimensions, and enclosures. Different materials with varying protection ratings can be selected to suit different operating environments. LUGAO's products comply with a series of international standards, such as CE and ISO, and the company will continue to innovate in design to create more energy-efficient and environmentally friendly dry type transformers.

Parameter

Rated capacity (KVA)	HV	LV	Vector Group	No-load current (%)	No-load loss (W)	Load loss (W)			Impedance (%)
						130℃(B)	150℃(F)	180℃(H)
30	6.3 10 11	0.4	dyn11 Yyno Dyn5	2	190	670	710	760	4.5
50				2	270	940	1000	1070
80				1.5	370	1290	1380	1480
100				1.5	400	1480	1570	1690
125				1.3	470	1740	1850	1980
160				1.3	540	2000	2130	2280
200				1.1	620	2370	2530	2710
250				1.1	720	2590	2760	2960
315				1.0	880	3270	3470	3730
400				1.0	980	3750	3990	4280
500				1.0	1160	4590	4880	5230
630				0.85	1340	5530	5880	6290	6.0
800				0.85	1520	6550	6960	7460
1000				0.85	1770	7650	8130	8760
1250				0.85	2090	9100	9690	10300
1600				0.85	2450	11000	11700	12500	8.0
2000				0.7	3050	13600	14400	15500
2500				0.7	3600	16100	17100	18400

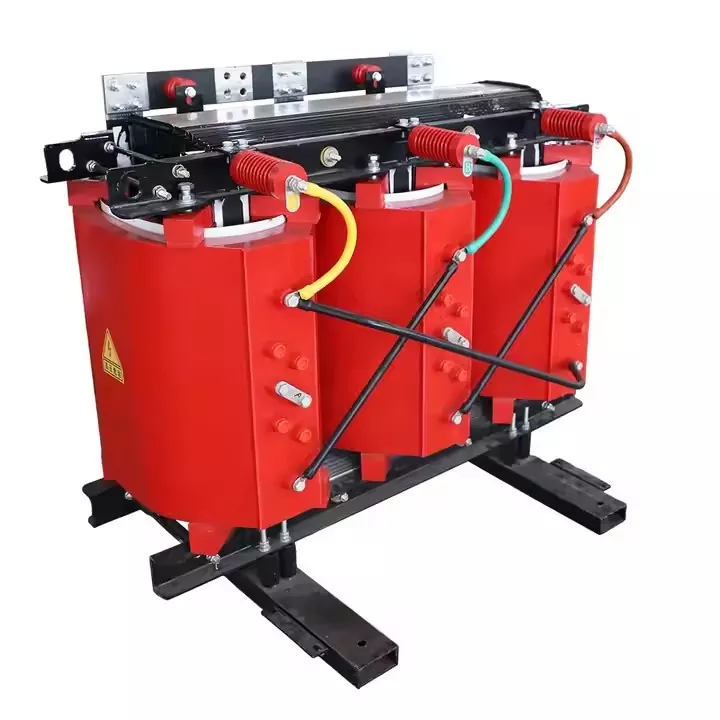

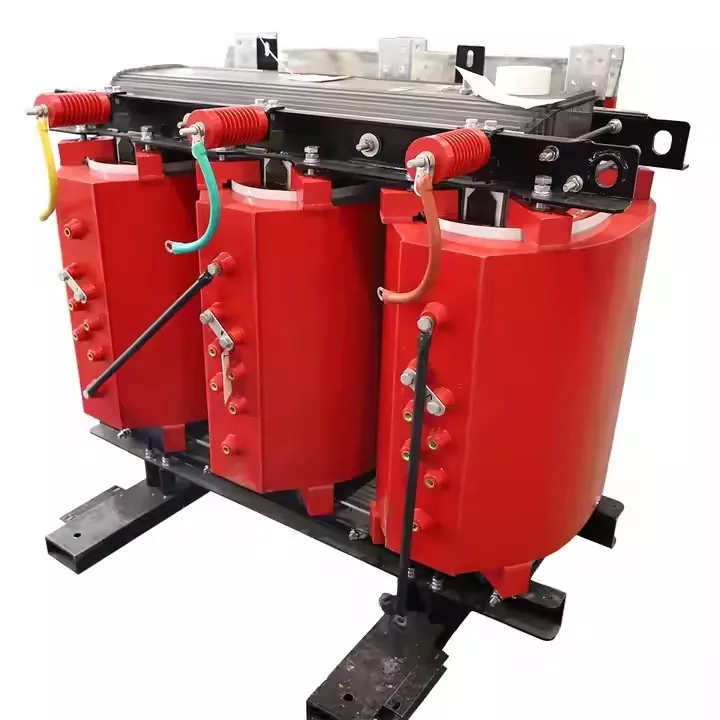

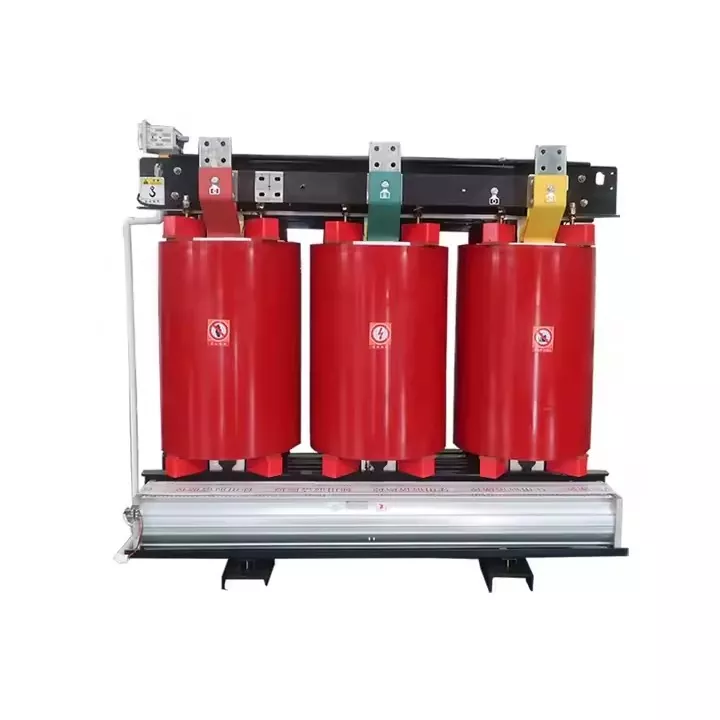

Product details

Our Factory

Transportation
