高周波送電用乾式変圧器

LUGAO is a China-based manufacturer with many years of experience in High Frequency Power Transmission Dry Type Transformer; we offer a stable supply and can tailor details to your needs. For pricing details, please contact us directly. LUGAO's epoxy resin transformer utilizes the principle of electromagnetic induction to achieve voltage conversion. During operation, when the primary winding is energized, it generates an alternating magnetic flux, which is coupled through the core to the secondary winding, thereby inducing an electromotive force. Air-cooled transformers use epoxy resin or silicone rubber as insulating materials. These materials possess self-extinguishing properties and do not pose safety hazards due to oil leakage. During the casting process, the pre wound coils are placed in specially designed molds, followed by the injection of epoxy resin mixture and heating for curing. The resulting structure has high mechanical strength, effectively isolating external dust and moisture while protecting internal metal components. High-quality silicon steel sheets and windings are selected as materials, offering advantages of low noise and low loss, making them suitable for environments such as office buildings, hospitals, and schools.

High Frequency Power Transmission Dry Type Transformer can be customized according to customer requirements for voltage ratings, dimensions, and housing specifications. Different protection ratings of materials can be selected to adapt to various operating environments. LUGAO's products comply with international standards such as CE and ISO, and the company will continue to innovate in design to manufacture more energy-efficient and environmentally friendly transformers.

Parameter

KVA	Voltage Combination and Tapping Range			Connection Group Symbol	No-load Loss (W)	Load Loss 120℃(W)	No-load Current (%)
	HV(kv)	Tapping (%)	LV (KV)
30	6 6.3 6.6 10 10.5 11	±5 ±2x2.5	0.4 0.69	Yyn0 Dyn11	190	710	2.1
50					270	1000	2.1
80					370	1380	1.6
100					400	1570	1.6
125					470	1850	1.5
160					540	2130	1.5
200					620	2530	1.3
250					720	2760	1.3
315					880	3470	1.1
400					980	3990	1.1
500					1160	4880	1.1
630					1340	5880	0.9
630					1300	5960	0.9
800					1520	6960	0.9
1000					1770	8130	0.9
1250					2090	9690	0.9
1600					2450	11730	0.9
2000					3050	14450	0.7
2500					3600	17170	0.7
1600					2450	12960	0.9
2000					3050	15960	0.7
2500					3600	18890	0.7

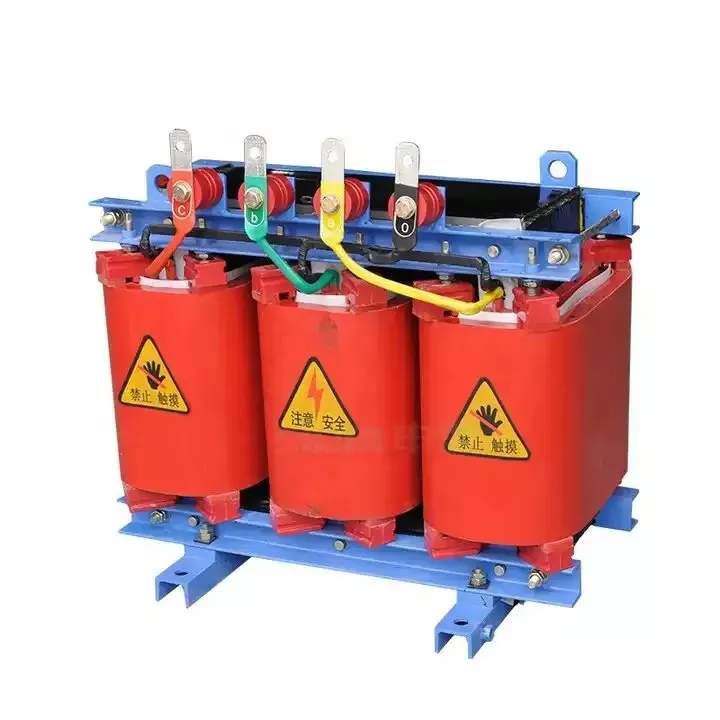

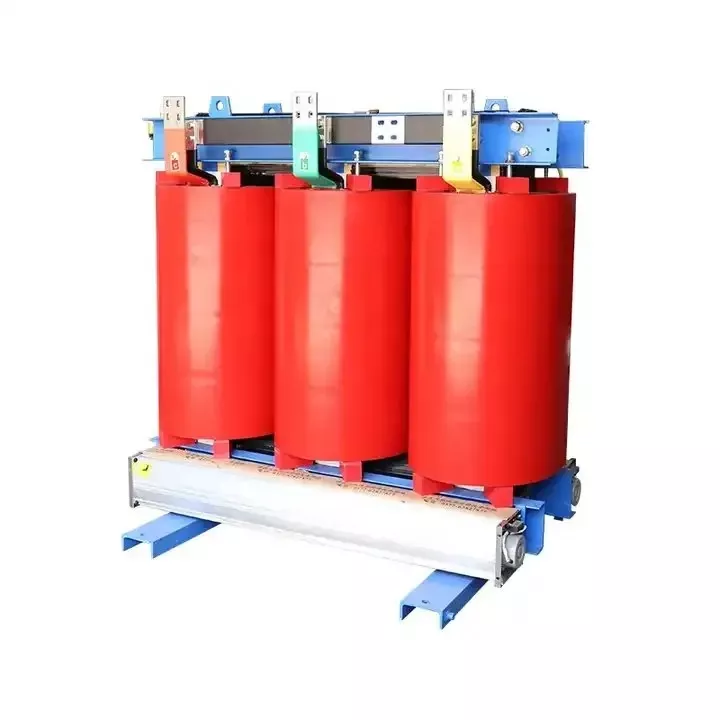

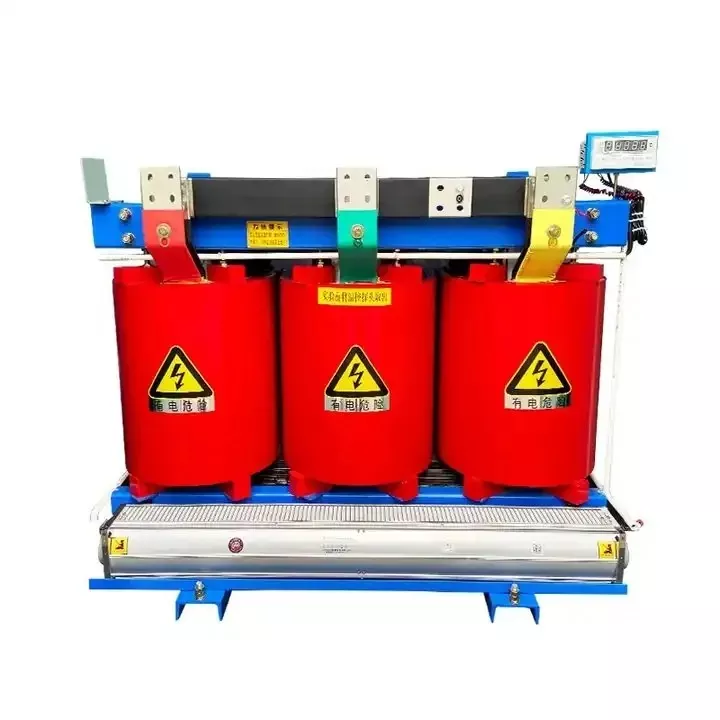

Product details
